Foshan Changkai Industrial Co., Ltd. founded in 2002, local in Foshan, near Guangzhou. Changkai has been dealing non-ferrous materials to about 20 countries all over the world,main deal in Stellite series alloy parts, Stellite bare Welding rods, Stellite Welding Powders, Nickel series Alloy parts, Nickel welding powders, Air carbon-arc Gouging rods, Tungsten wires, Molybdenum wires and Various Welding materials.

Our products include Machined Parts of Tungsten alloy, Stellite Series Alloy,Cobalt based Alloy, Nickel based alloy, and Cemented carbide cutting tools, thermal spray materials etc, which are applied to Various industries: Welding, Thermal spraying coating,Petrochemical sealing parts/Valves, Automotive, Steel, Bushings of Hot Dip Galvanizing line, Machining industries, Vacuum metallizing coating,etc..

We treasure our customers and keeping give highest satisfaction to clients with technology, fast and good service.





PRODUCTS

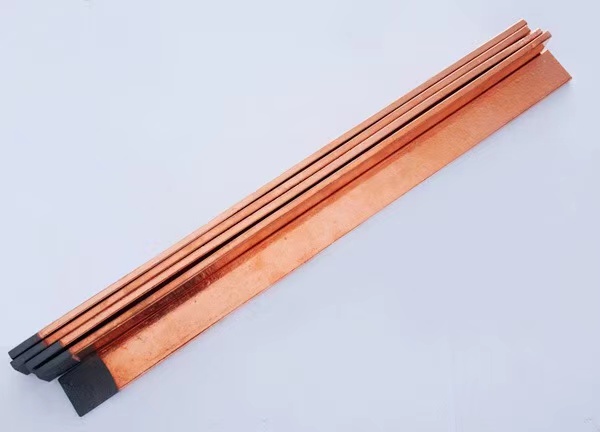

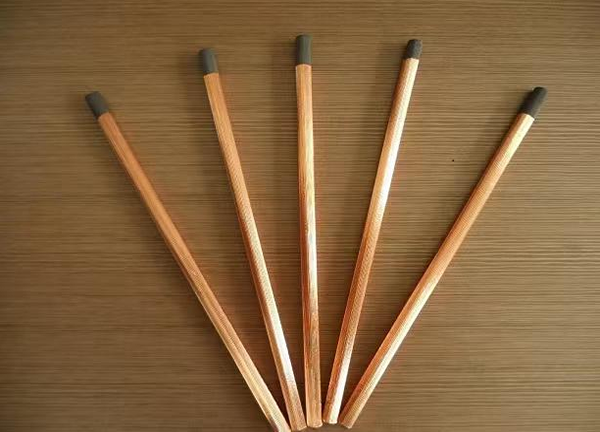

Air Carbon-arc Gouging
  —Gouging carbon electrode for gouging torch.
  Air carbon-arc gouging/Air carbon-arc cutting

Carbon arc gouging is often used to remove material before welding.

Air carbon-arc gouging, also known as air carbon-arc cutting, is a metal removal process that utilizes the heat generated by an arc between a carbon electrode and the workpiece. Compressed air, directed through outlets in the torch, lifts the molten metal away from the arc, preventing it from solidifying and facilitating smooth metal removal.


Material: Graphite,Copper coated
Welding Current: 400-450A
Operating Temperature: Standard Temperature
Diameter * Length Current Range(A)
mm inches
3.2*305 1/8*12' 130-180
4*305(355) 5/32*12'(14') 150-200
5*305(355) 3/16*12'(14') 200-250
6*305(355)(400)(455)(510) 15/64*12'(14')(16')(18')(20') 300-350
6.5*305(355) 1/4*12'(14') 320-370
7*355 9/32*14' 350-400
8*305(355)(400)(455)(510) 5/16*12'(14')(16')(18')(20') 400-450
9*305(355) 23/64*12'(14') 450-500
9.5*305(355) 3/8*12'(14') 500-550
10*305 (355)(400) (455)(510) 3/8*12'(14')(16')(18')(20') 550-600
11*305(355) 7/16*12'(14') 600-650
12*305(355) 15/32*12'(14') 750-850
12.7*305 (355) 1/2*12'(14') 800-1000
13*305(355) 1/2*12'(14') 800-1000
16*305(355) 5/8*12'(14') 1000-1200
19*305(355) 3/4*12'(14') 1200-1400


Instructions:
  1. Thel electrodes must keep in dry environment, if it is affected with damp must be drying before use.
  2. When using for the direct current, the electrodes link to the anode, and task to the cathode.
  3. Keeping steady of working normal air pressure.
Caution:
  • Electrodes must be kept dry. Wet electrodes can flake, or splinter and are dangerous. If electrodes become wet, bake at 300°F for 10 hours before using.

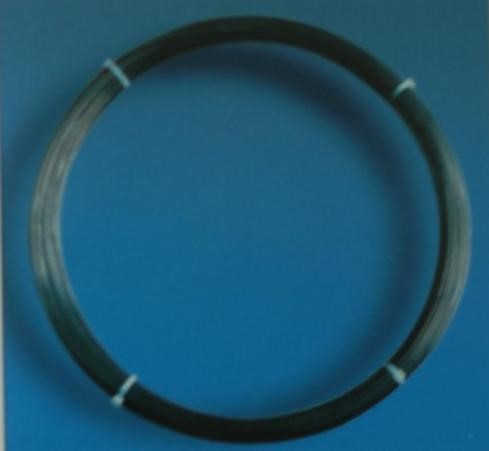

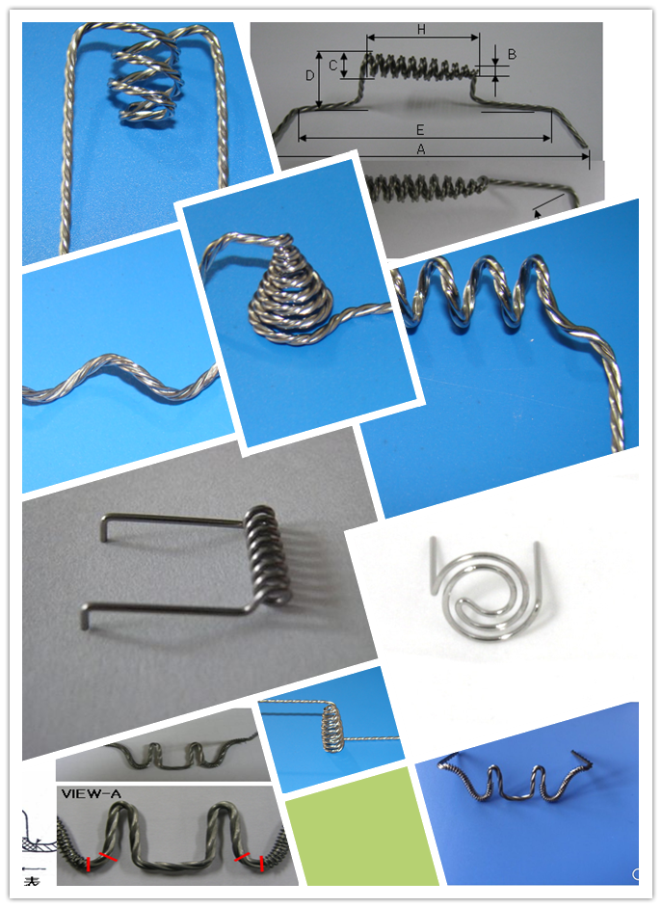

Tungsten wire
  —Apply for Vacuum metalizing coating, Electron gun ion source coating


BRAND: WAL1
Common Dia.(mm+/-2%): 1.0, 0.85, 0.80, 0.77, 0.65, 0.6, 0.4
Diameter can be Customization
Chemical component:
W(%) other elements(ppm)
>99.95% KSiAlCaMgFeMoNi
70~73<515<4<4<10<20<5
Characteristics: The material has a high melting point, with good corrosion resistance, long melting life.
Wire has good consistency, excellent wind performance, softer, easy to bend, without break, crack.

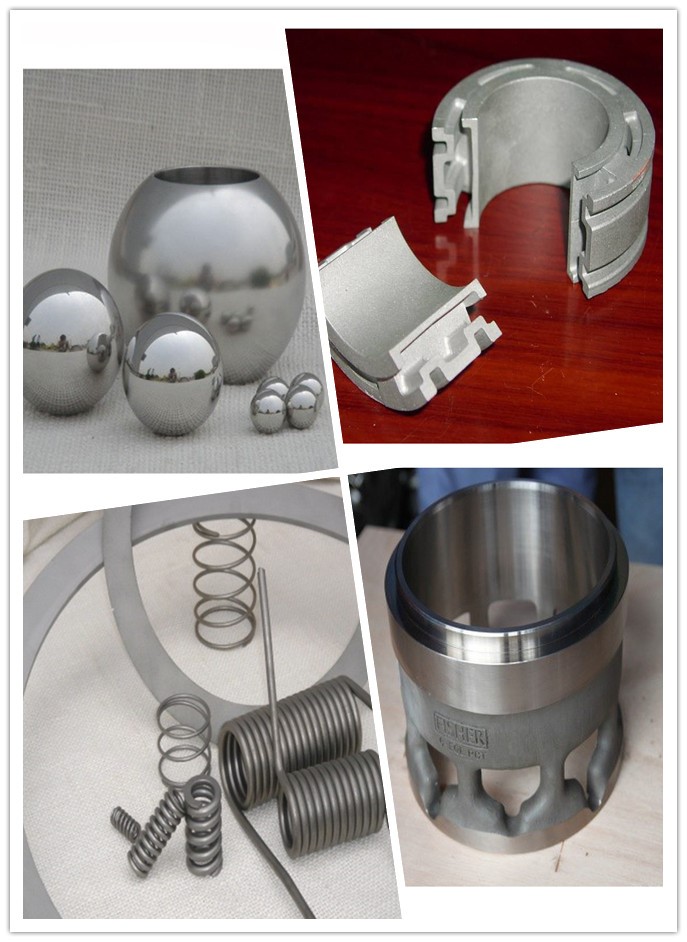

Stellite Series Alloy/Cobalt based Alloy
  — Can resist against various kinds of abrasion,corrosion,high-temperature oxidation with offering high hardness and hot hardness, excellent high-temperature strength and thermal fatigue resistance and thermal shock resistance.

Most used to making as the spares/parts which need working under anti-abrasion, anti-corrosion,anti-grain, metal abrasion, anti- high temperature and anti-high shock working environment.

Main products: Cobalt Bare welding rods, Cobalt-base alloy Welding Powder , Cobalt-base Electrode welding rods, Cobalt-base Precision Casting and wrought alloys.
Cobalt based alloy Available Forms
FormProcessingSpecificationAvailable
Hardfacing MaterialsBare RodsOXY,TIG,PTADiameter :2.7mm 3.2mm
4.0mm 4.8mm 6.4mm 8.0mm
Length:350mm 500mm 1000mm
ElectrodesSMA(DC)Diameter: 3.2mm 4.0mm 4.8mmLength: 350mm
Standard Package : 5Kg/Box
PowderOXY ,PTA High Frequency
Remelting Process
Particle Size(u): 150/320 200/400
250/400 280/400 180/400 60/170 60/200
100/320 100/325 150/325 80/270
Standard Package : 5Kg/ Bottle
CastingsPrecision CastingsSilica sol Investment CastMax Weight of casting piece:180KgsEnd Product/Workblank
Sand CastingsSand CastMax Weight of casting piece:1800KgsWorkblank
Wrought AlloyForgingFree forging/ Die forgingDiameter > 20mmEnd Product/Workblank
SpringCold forming+Heat treatmentWire Dia.: 0.35~8mmWorkblank

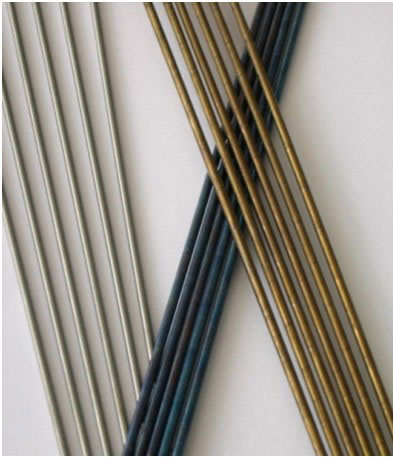

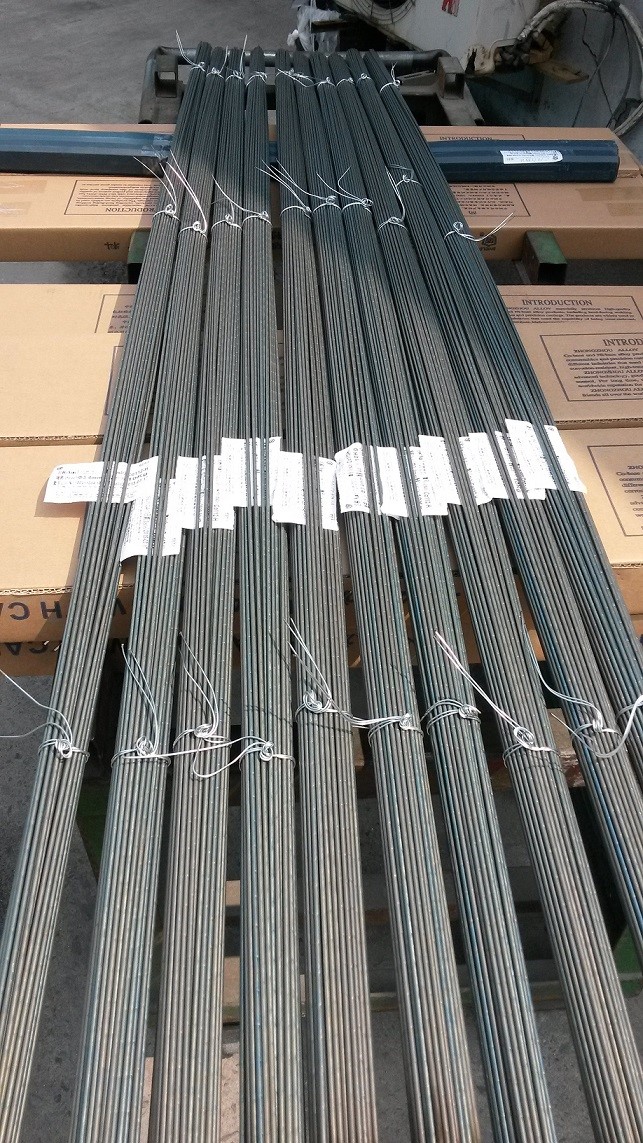

Stellite bare welding rods/Cobalt based welding rods:
Brand Abroad Metal No: Nominal Chemical Composition(%) HRC Application Reference
Standard
C Cr Si Ni W Fe Mn Mo Co
Shield 1 Co101 2.50 29.00 1.00 ≤3.00 13.00 ≤3.00 ≤1.00 ≤1.00 Bal 50-60 rotating sealing ring ,
gouge type bearing sleeve,
drill head, valve seats etc
AWS A5.21 ERCoCr-C
Shield 3 Co103 2.40 30.00 1.00 ≤3.00 13.00 ≤3.00 ≤1.00 ≤1.00 Bal 50-56 wearing panel of cracker blade, work
rest of center-less grinding machine,
valve seat, etc
AWS A5.21 ERCoCr-C
Shield 4 Co104 1.00 32.00 1.00 ≤3.00 14.00 ≤1.00 ≤0.50 ≤0.50 Bal 45-50 hot pressing die of copper-aluminum
alloys, hot extruding die, dry cell die, etc

Shield 6 Co106 1.15 29.00 1.00 ≤3.00 4.50 ≤3.00 ≤1.00 ≤1.00 Bal 45-46 motor spiracle, high temperature and
high-pressure valve sealing surface,
turbine blade, etc
AWS A5.21 ERCoCr-A
Shield 8 Co108 0.20 28.00 1.00 2.25 -- ≤3.00 ≤1.00 6.50 Bal 30-35 steam turbine blade, copper casting die,
extruding die, etc.

Shield 12 Co112 1.40 29.00 1.20 ≤3.00 8.00 ≤3.00 ≤1.00 ≤1.00 Bal 44-50 high-temperature and high pressure valve,
shear edge, sawteeth, spiral push rod, etc
AWS A5.21 ERCoCr-B
Shield 19 Co119 3.30 26.00 0.90 ≤1.00 14.00 ≤2.50 ≤1.00 ≤1.00 Bal ≥54 drill head in petroleum industry AWS A5.21 ERCoCr-G
Shield 20 Co120 2.50 32.00 1.20 ≤3.00 17.00 ≤3.00 ≤0.50 ≤1.00 Bal 55-59 rotating sealing ring,high-pressure
valve seat, wearing panel. etc
AWS A5.21 ERCoCr-E
Shield 21 Co121 0.20 27.00 1.00 ≤3.00 0.50 ≤2.00 ≤1.50 5.50 Bal 20-42 various liquid valves, valve seats,
water turbine blade, hot forging die, etc

Shield 25 Co125 0.05 20.00 1.00 10.00 15.00 ≤2.00 ≤1.50 ≤1.00 Bal ≤24 high-temperature and corrosion-resistant
valve sealing surface, seamless pipe head,
pressure casting dies, etc.

Shield 31 Co131 0.45 26.00 1.00 10.00 7.00 ≤3.00 ≤1.00 ≤1.00 Bal 30-35 brass casting dies, extruding dies,
steam turbine blade, etc.

Shield 32 Co132 1.80 25.00 1.00 22.00 12.00 ≤1.35 ≤0.50 ≤1.00 Bal 40-45 the in/outlet valve sealing surface of
internal combustion engines.
AWS A5.21 ERCoCr-F
Shield 37 Co137 2.00 33.00 1.10 24.00 5.00 ≤1.35 ≤1.00 -- Bal 44-50 pre-protection and repair of saw teeth,
shear blade, spiral push rods, etc.

Shield T-400 Co140 0.08 8.50 2.60 1.50 -- ≤1.50 ≤1.00 28.00 Bal 50-60 valve and roller path, plastic extruded in
strongly corrosive media, etc.

Shield 50 Co150 0.12 28.00 1.00 -- -- 21.00 ≤1.00 -- Bal -- Comparatively good high temperature
corrosion- and fatigue-resistance

Shield T-800 Co180 0.08 18.00 3.50 ≤1.50 -- ≤1.50 ≤1.00 28 Bal 52-56 valve and roller path, plastic extruded in
strongly corrosive media, etc.




Cobalt-Base Electrode welding rods:
Brand Abroad Metal No: Nominal Chemical Composition(W%) HRC Application
C Cr W Si Fe Mo Mn Ni Co
Shield ED1 EDCo101 2.10 29.00 14.00 1.00 5.00 1.00 2.00 3.00 Bal 50 rotating sealing ring, gouge type bearing, sleeves, valve seat, cutter edge, etc
Shield ED6 EDCo106 1.00 29.00 4.50 1.00 5.00 1.00 2.00 3.00 Bal 40 high temperature and high-pressure valve , hot shear blade, turbine blade, etc
Shield ED12 EDCo112 1.40 29.00 8.50 1.00 5.00 1.00 2.00 3.00 Bal 44 high-temp and high pres valves, shear edge, saw teeth, spiral push rod, etc
Shield ED21 EDCo121 0.20 27.00 -- 1.00 5.00 5.00 2.00 3.00 Bal 20 high-temp and high-pres valve, water turbine blade, hot forging die, etc
Shield ED25 EDCo125 0.10 20.00 15.00 0.80 5.00 1.00 2.00 10.00 Bal 22 high-temperature and corrosion-resistant valve sealing surface seamless
pipe socket, pressure casting dies, etc.



Cobalt-Base wrought alloy:
Brand Abroad Metal No: Nominal Chemical Composition(W%) Application
C Si Cr Mo Mn Fe Ni Co
Shield 21MB2 Co121MB2 0.35 1.00 28.00 6.00 1.00 0.75 1.00 Bal Medicine using ,casting bar, etc
Shield 25B Co125B 0.10 1.00 20.00 1.00 2.00 2.00 10.00 Bal used where fatigue-, inter-metal wear-resistance

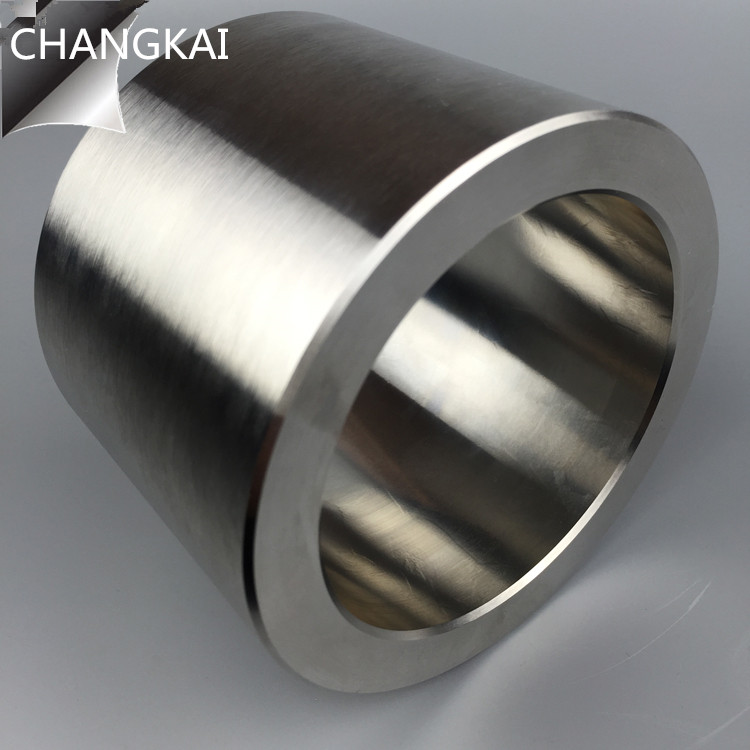

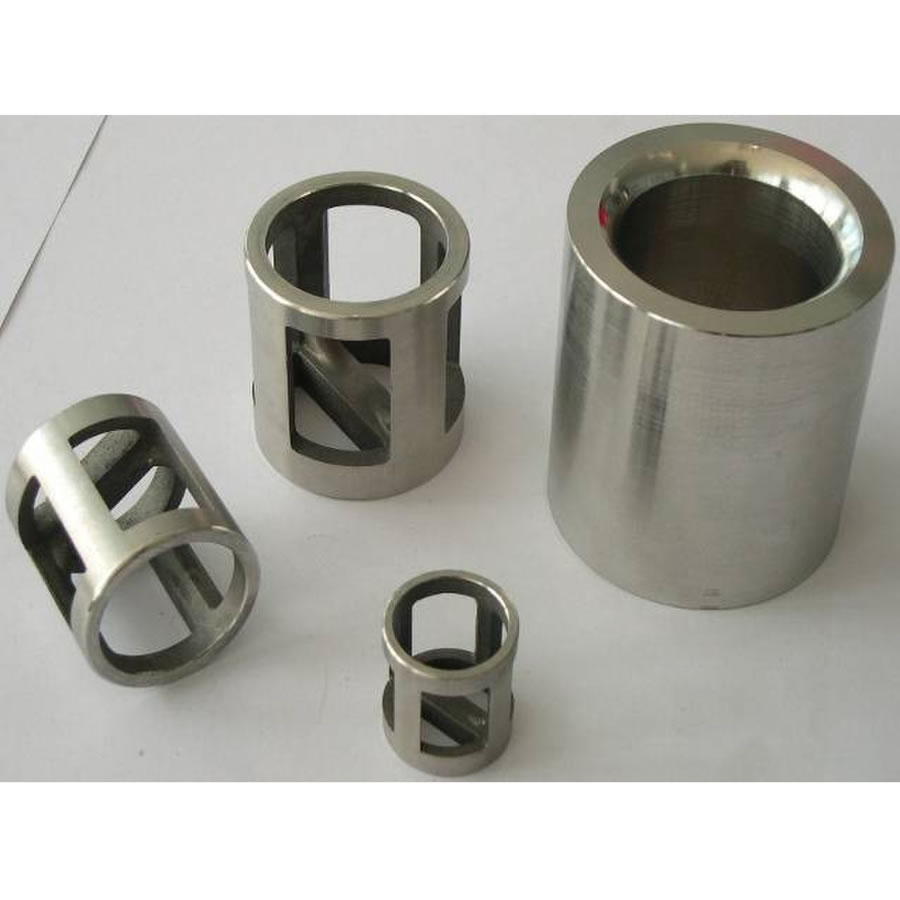

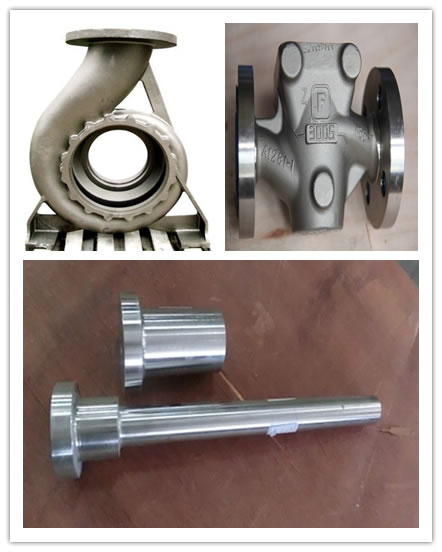

Cobalt-Base Precision Casting:Machined Parts/Workblank Available
Brand Abroad Metal No: Nominal Chemical Composition(%) HRC Application Reference
Standard
C Cr W Si Fe Mo Ni Co
Shield 1Z Co101 2.50 29.00 12.00 1.00 3.00 1.00 3.00 Bal 50-60 valve seat and bearing sleeve, etc
Shield 3Z Co103 2.50 30.00 12.50 1.00 3.00 1.00 3.00 Bal 51-58 pump shaft sleeve, rotating sealing ring,
wear-resistance gasket, bearing bush,
plastics extruded gasket.

Shield 4Z Co104 0.90 32.00 14.00 1.00 1.00 0.50 0.50 Bal 45-59 hot pressing and hot extruding
copper/aluminum alloy die,zinc-plating
equipment bearing,cell die ,etc

Shield 6Z Co106 1.20 29.00 4.50 1.50 3.00 1.50 3.00 Bal 39-43 steam and chemical valve seats. AMS 5387C-01
UNS R30006
Shield 12Z Co112 1.60 29.00 8.00 1.50 2.50 1.00 3.00 Bal 47-51 hot extruding die ,zinc-plating equipment
bearing, etc.

Shield 20Z Co120 2.50 32.00 17.00 1.00 2.50 1.00 2.50 Bal 55-59 pump shaft sleeve, rotating sealing ring,
wear-resistance gasket, bearing bush,
plastics extruded gasket.

Shield 21Z Co121 0.25 27.00 -- 1.00 3.00 5.50 2.75 Bal 32 steam turbine blade ,brass casting die ,
hot extruding die
AMS 5385G-99
UNS R30021
Shield 31Z Co131 0.50 25.50 7.50 1.00 2.00 0.50 10.50 Bal 30-35 steam turbine blade, shaft sleeve and hot
extruding die, etc
AMS 5382H-00
UNS R30031
Shield 33Z Co133 2.30 33.00 17.50 1.00 2.00 -- 1.00 Bal 52-56 high-temperature wearing parts and food
processing industry

Shield T800Z Co180 0.10 18.00 -- 0.30 Ni+Fe:3.00 28.50 -- Bal 54-58 valve gate, valve board and plastic extruded
gasket

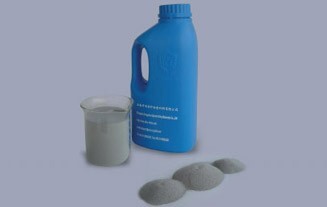

Stellite Series Welding Powder/Cobalt based Welding Powder:
Brand Abroad Metal No: Nominal Chemical Composition(W%) HRC Application
C Cr W Si Fe Mo Mn Ni Co
Shield 1F Co101F 2.50 31.00 12.50 1.00 3.00 1.00 0.25 3.00 Bal 48-54 repair and pre-protection of spiral push rods,
rotating sealing rings, drill head, etc.
Shield 6F Co106F 1.10 29.00 4.00 1.10 3.00 1.00 0.50 3.00 Bal 36-43 repair and pre-protection of spiracle, valve seats,
blade and spiral push rods, etc.
Shield 12F Co112F 1.40 29.50 8.25 1.45 3.00 1.00 1.00 3.00 Bal 42-49 pre-protection of cutter and blade, outlet valve sealing surface , etc.
Shield 20FB Co120FB 2.50 32.50 17.00 1.20 3.00 1.00 0.50 3.00 Bal 55-60 pre-protection of valve seats,blade,wearing panel, rotating sealing ring, etc.
Shield 32F Co132F 1.80 26.00 12.00 1.10 3.00 0.60 0.50 3.00 Bal 38-44 pre-protection of outlet valve sealing surface and valve
seat of internal combustion engines.
Shield 58F Co158F 0.90 26.00 5.50 1.80 3.00 0.50 0.20 3.00 Bal 40-46 repair and pre-protection of high-pressure valve sealing surface,
outlet valve of internal combustion engine, etc.

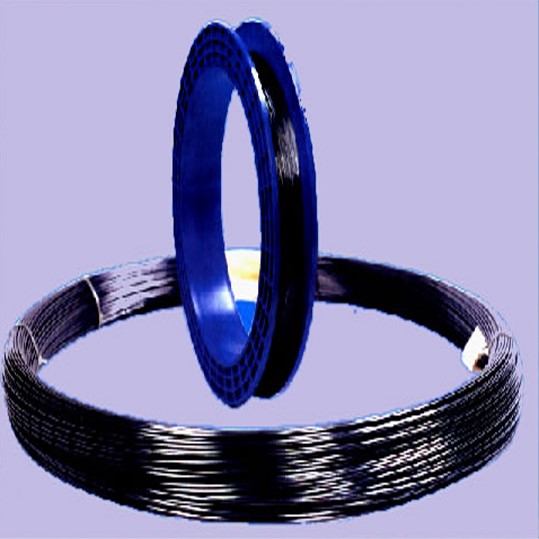

Molybdenum Wire
  --Pure Molybdenum wire >99.95%: Cleaned, Black
  applied to: Mandrel or Support wire

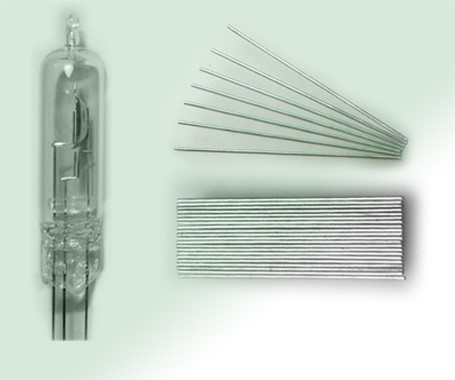

  --Doped molybdenum wire: Cleaned, Black
  applied to:Support wire of Halogen lamp, Lead wire of UV lamp
  --Thermal spraying molybdenum wire: Black

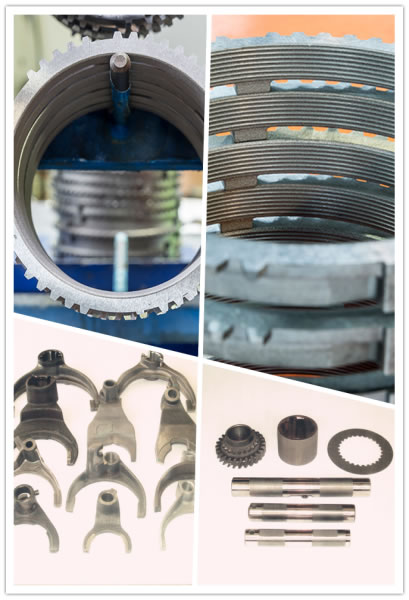

Applied for abrasion and wear resistance parts, thermal spray coating on Automotive parts, such as piston rings, synchronizer rings, cones, gear box bushings, gear forks, piston rings, differential pins etc.

Changkai’s molybdenum spray wire is made of pure molybdenum, Mo more than 99.95%, which has good inter-laminar strength. The wire has smooth surface, no burr, split.

Properties:
1.The weight of a single wire is 10-25kg
2.Diameter:3.175mm,2.31mm,1.60mm, 1.45mm or customized
3. Tensile strength: 700-800N / mm2
2. 4. Elongation: >10-20%
